Light, active and speed-hungry – characteristics that define the Nostra DC. Effortless climbing, acceleration and handling at any time.
From evening laps to XC racing, the Nostra DC is a loyal companion that drives you to new heights.

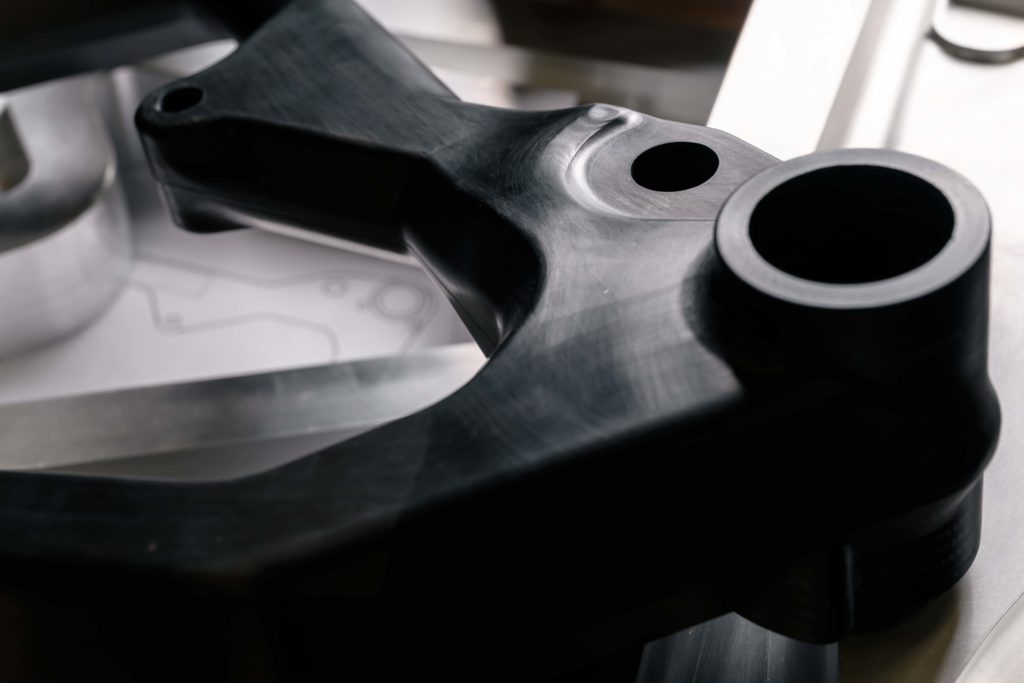

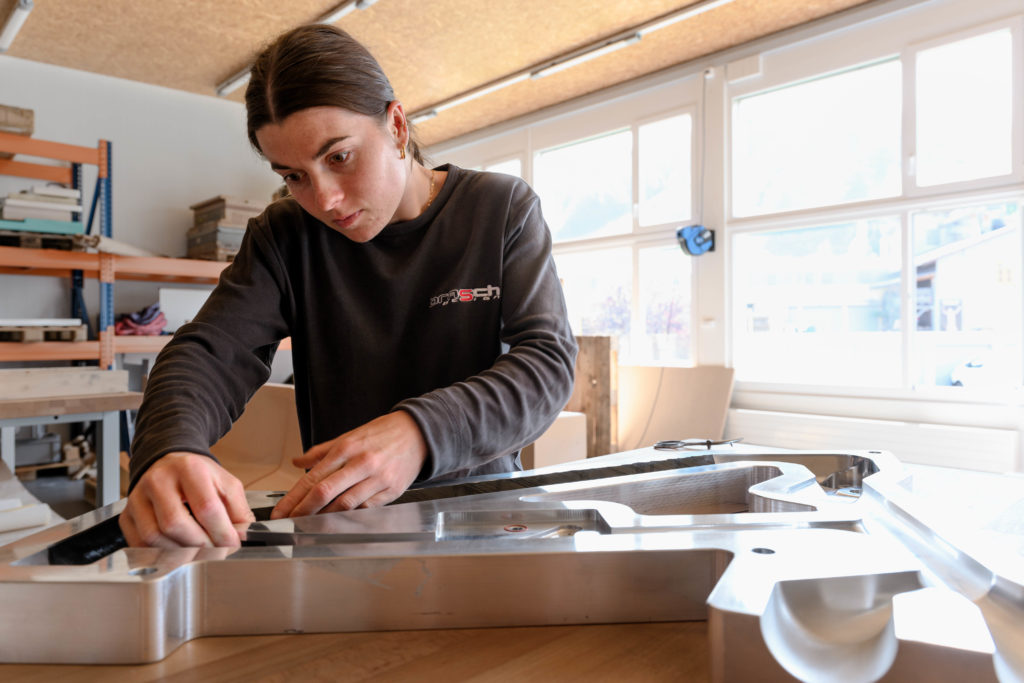

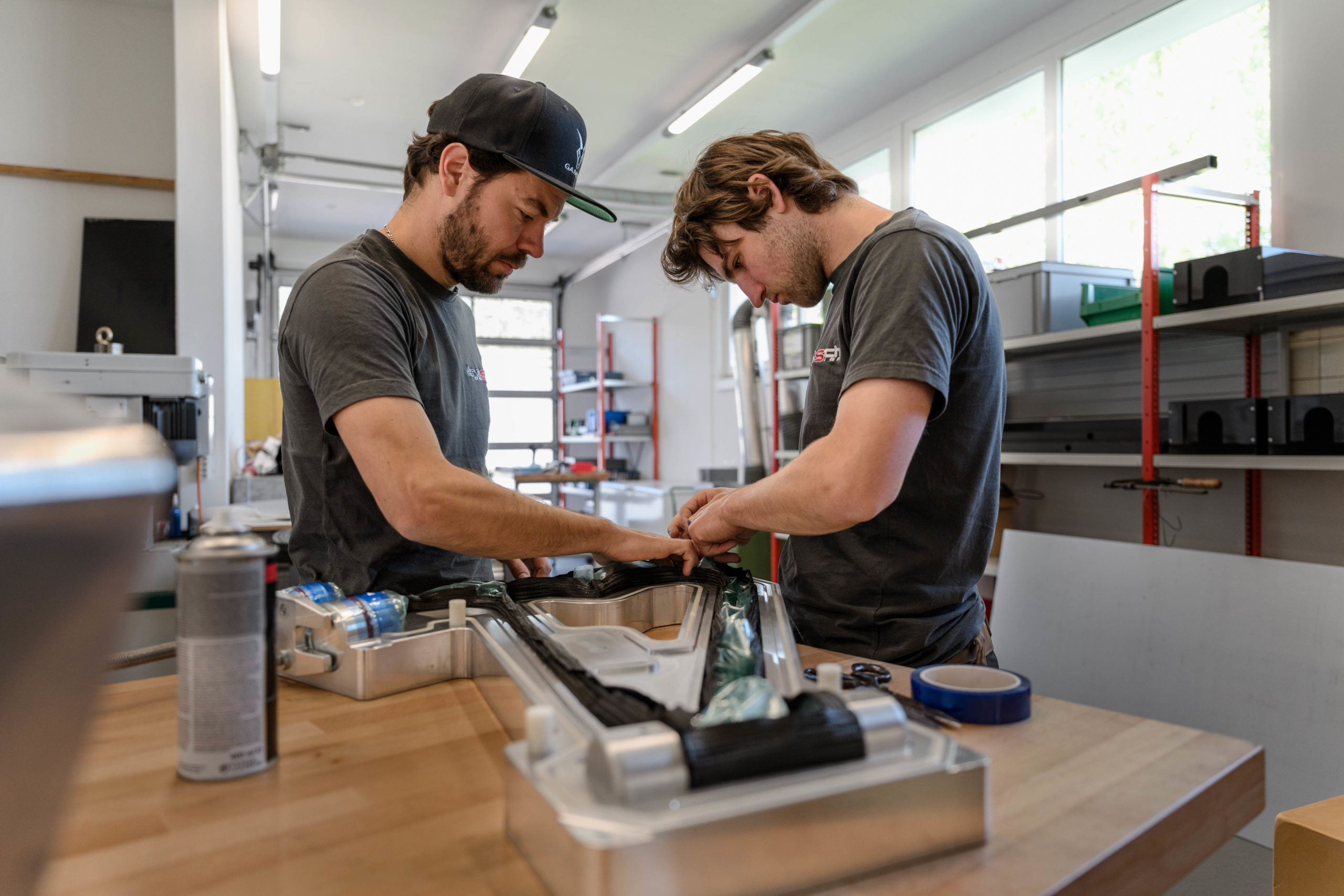

Designed, manufactured and assembled in Switzerland, with Swiss precision and passion.
The Nostra DC – the authentic Swiss trail rocket
Are you looking for a unique bike tailored to you? Book one of the limited production slots now, and secure a 1st edition Nostra!
You will be contacted by our staff to create YOUR dream bike in a comprehensive and easy process.

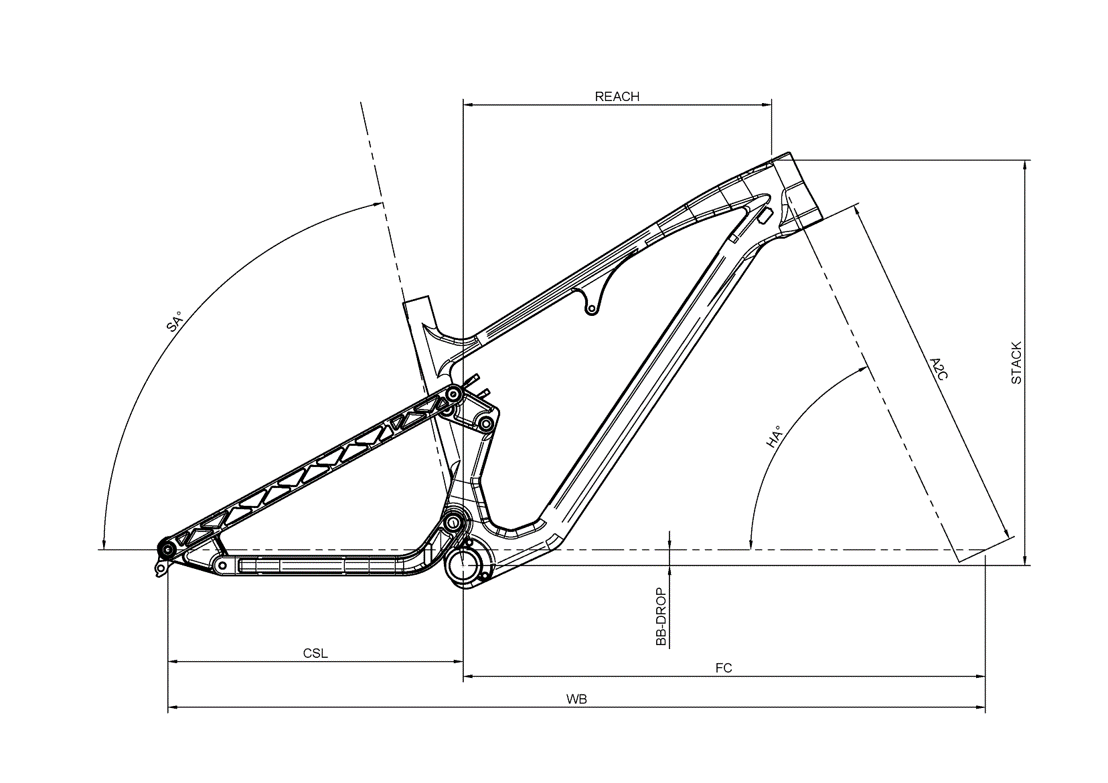

| S1 | S2 | |
| Reach: | 470 mm | 485 mm |
| Stack: | 615.5 mm | 625.5 mm |
| BB-Drop: | 29.5 mm | 29.5 mm |
| HA: | 65 degrees | 65 degrees |
| SA: | 78 degrees | 78 degrees |
| CSL: | 445 mm | 445 mm |
| FC: | 789 mm | 804 mm |
| WB: | 1234 mm | 1249 mm |
| A2C: | 552 mm | 552 mm |
| Range of use: | XC to Trail (ASTM cat. 1-3) |
| Damper: | 210 x 50 -> 121mm travel |
| 210 x 55 -> 130mm travel | |
| Damper hardware: | 8mm x 20mm front and back |
| Fork travel: | 120-140mm -> 130mm recommend |
| Front wheel: | 29 Zoll (110 x 15) |
| Rear wheel: | 29 Zoll (148 x 12 – Boost) |
| Dropout: | SRAM UDH |
| Brake discs: | PM 180 – Max. 203mm |
| Tires: | 29 x 2.25 – 29 x 2.50 |
| Headset: | ZS44/ZS56 |
| Bottom bracket: | PF92 |
| Chainline: | 52mm recommend, 55mm also works |
| Frame weight: | Ca. 2200g in S1 and Raw |
| Seat tube: | 31.6mm with a 35mm Saddle clamp |
| Main frame: | CFK, Swiss Made |
| Rear frame: | CFK & Aluminium Hybrid, Swiss Made |
| Colors: | Launch Edition or black |
| Cable routing: | Internally routed, |
| „SRAM Transmission“ option available | |
| Lay-Up: | Standard |
| ISCG mount: | Upon request |
| Hardware: | Aluminum and steel |
| Aluminum and titanium on request | |
| Chainring: | Min 30t, Max 34t |
| MSRP Frame: | Without shock – from X‘XXX CHF |
| Available from: | Launch Edition (limitted auf XX stk.) |
| from February 2024 |

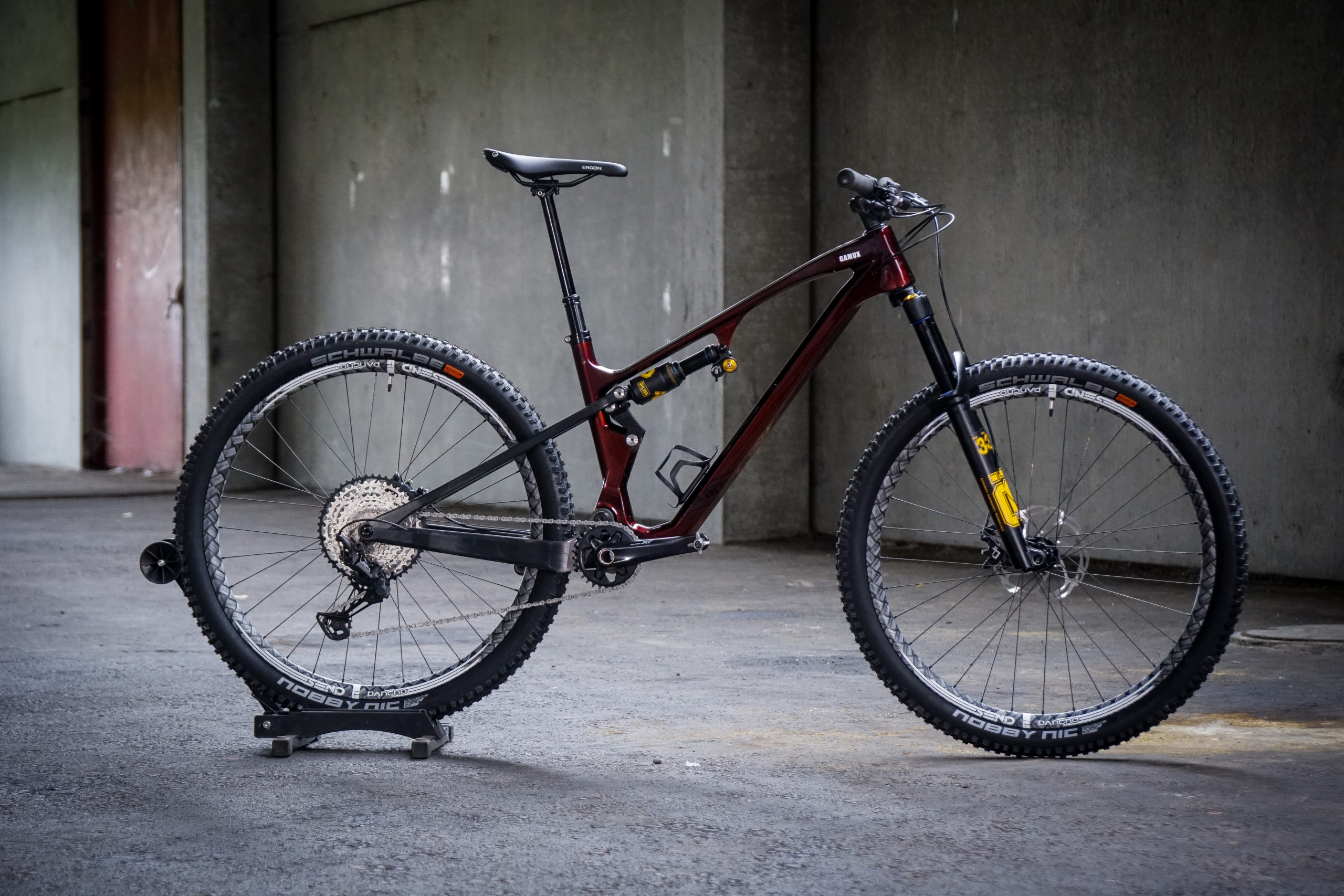

*Pictures are from a prototype bike. Final bike could be different
Air shocks of the length 210mm x 55mm/50mm are compatible
The Nostra DC is not compatible with coil shocks.
Large volume air shocks such as the RS Vivid or Fox Float X2 do not fit in the Nostra DC.
Please contact us to verfy your shock compatability.
Yes, you can install 210mm shocks with 55mm to 50mm of travel.
55mm: 130mm of travel
50mm: 122mm of travel.
With less travel you get a sportier bike, with more travel you get a little more comfort and grip.
Maximum 140mm. We recommend 130mm for optimal geometry.
Front and rear: Internal routing.
“Sram Transmission” option available
Nostras of the 1st Edition are pre-production models. The frames have been subjected to months of internal testing but not yet officially tested. The frames are 100% safe and have a 2 year warranty against damage when used properly!
No, the Nostra DC is only compatible with 29 inch rear wheel.
Dropper seatposts with up to 200mm can be installed.
At your store of trust or at Gamux
Europe: Yes of course , just order on the Gamux website or contact Gamux.
Other continents: Not yet.
