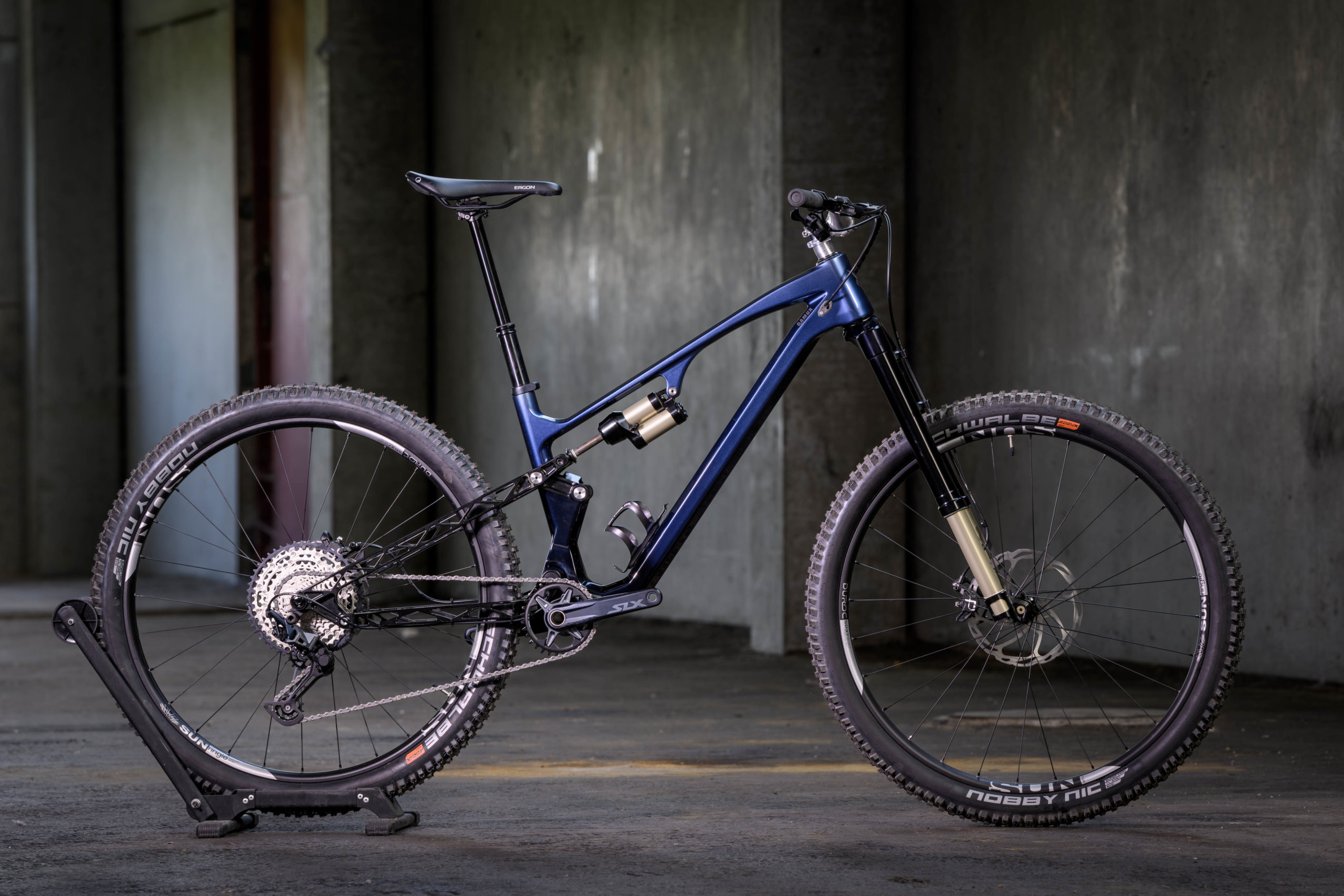

Light on its feet, playful & inspiring – qualities that set the Nostra LT apart. Willing to change direction, ready to take-off at any time.
From evening laps to epic trail adventures, the Nostra LT is a reliable partner in any terrain and inspires your confidence.
Designed, manufactured and assembled in Switzerland, with Swiss precision and passion.
The Nostra LT – the authentic Swiss trail companion.
Are you looking for a unique bike tailored to you? Book one of the limited production slots now, and secure a 1st edition Nostra!
You will be contacted by our staff to create YOUR dream bike in a comprehensive and easy process.
| S1 (29/Mullet) | S2 (29/Mullet) | |
| Reach: | 468 mm | 483 mm |
| Stack: | 615 mm | 625 mm |
| BB-Drop: | 24mm / 12 mm | 24mm / 12 mm |
| HA: | 64.5 degrees | 64.5 degrees |
| SA: | 77.5 degrees | 77.5 degrees |
| CSL: | 448 mm | 452 mm |
| FC: | 792 mm | 807 mm |
| WB: | 1240 mm | 1259 mm |
| A2C: | 562 mm | 562 mm |
| Range of use: | Trail (ASTM Kat. 1-4) |
| Damper: | 210 x 55 -> 145mm travel |
| Damper hardware: | 8mm x 20mm front and back |
| Fork travel: | 150-160mm -> 150mm recommended |
| Front wheel: | 29 inch (110 x 15) |
| Rear wheel: | 29 inch (148 x 12 – Boost) |
| Dropout: | SRAM UDH |
| Brake discs: | PM 180 – Max. 203mm |
| Tires: | 29 x 2.25 – 29 x 2.50 |
| Headset: | ZS44/ZS56 |
| Bottom bracket: | PF92 |
| Chainline: | 52mm recommended, 55mm also works |
| Frame weight: | Ca. 2600g in S1 and Raw |
| Seat tube: | 31.6mm with 35mm Saddle clamp |
| Main frame: | CFK, Swiss Made |
| Rear frame: | Aluminium 7075 CNC |
| Colors: | Launch Edition or black |
| Cable routing: | Front: Interior routing, |
| Rear: External routing | |
| „Sram Transmission“ Option available | |
| Lay-Up: | High Durability |
| ISCG mount: | Yes |
| Hardware: | Aluminum and steel |
| Aluminum and titanium on request | |
| Chainring: | min 30t, max. 34t |
| MSRP Frame: | Without shock - from X‘XXX CHF |
| Available from: | Launch Edition (limitiert to XX stk.) |
| from February 2024 |
*Production bike may differ from these pictures
Yes, the Nostra LT is compatible with most of the common coil shocks
No
Maximum 160mm. We recommend 150mm for optimal geometry.
Front: Internal routing. Rear: External routing.
“Sram Transmission” option available
Nostras of the 1st Edition are pre-production models. The frames have been subjected to months of internal testing but not yet officially tested. The frames are 100% safe and have a 2 year warranty against damage when used as intended!
Air shocks or coil shocks of the length 210mm x 55mm. Large volume air shocks such as the RS Vivid or Fox Float X2 do not fit in the Nostra LT.
Please contact us to verfy your shock compatability.
Yes, there will be a Mullet shock yoke with which you can install a 27.5 rear wheel without changing the geometry.
Dropper seatposts with up to 200mm can be installed.
At your store of trust or at Gamux
Europe: Yes of course , just order on the Gamux website or contact Gamux.
Other continents: Not yet.
