Designed with zero compromises:
– Automatic shifting gearbox
– Belt drive system,
– CNC machined from space-grade aluminum
– Bonded carbon tubes
The Sego builds on years of development in the harshest and most competitive environment in all of cycling:
The UCI Downhill World Cup
This pure racing machine has only one purpose – to open new dimensions of speed and inspire you to ride faster than ever before.
“Sego” in the ancient Celtic language means to win! Do you want to become a winner?
The Sego might just be the right tool for you to reach the next level of speed.

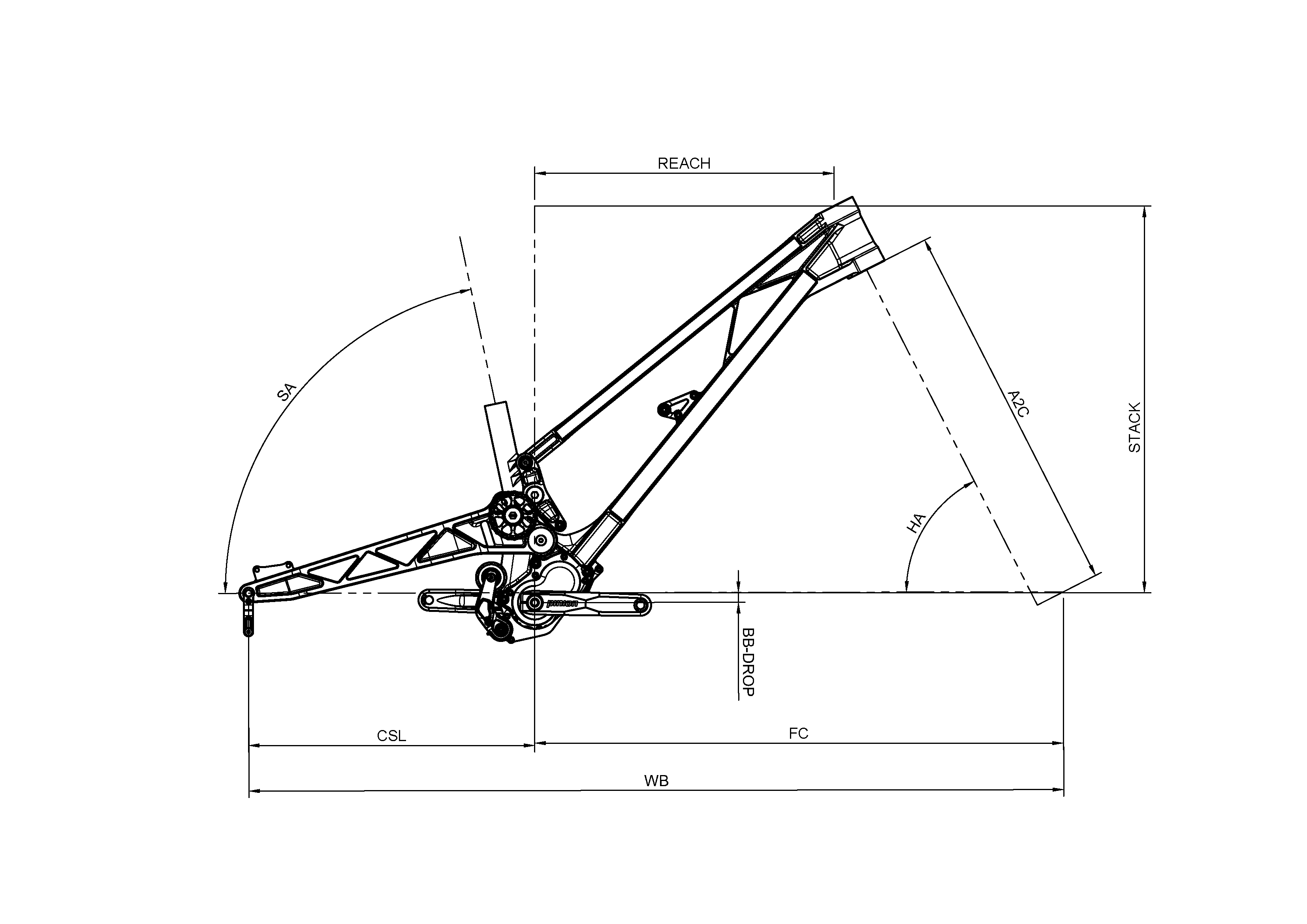

| S1 (29-29)/( 29-27.5) | S2 (29-29)/( 29-27.5) | S3 (29-29)/( 29-27.5) | |
| Reach | 465 mm | 480 mm | 505mm |
| Stack | 631 mm | 638 mm | 648 mm |
| BB-Drop | 15 mm / 5.2 mm | 15 mm / 5.2 mm | 15 mm / 5.2 mm |
| HA | 63 Degrees | 63 Degrees | 63 Degrees |
| SA | 78 Degrees | 78 Degrees | 78 Degrees |
| CSL | 460 mm / 445 mm | 460 mm / 445 mm | 460 mm / 445 mm |
| FC | 835 mm | 850 mm | 880 mm |
| WB | 1295 mm / 1280 mm | 1310 mm / 1295 mm | 1340 mm / 1325 mm |
| A2C | 608 mm | 608 mm | 608 mm |
| Range of use: | Downhill |
| Shock: | 250 x 75 -> 200mm travel |
| Shock hardware: | 8mm x 30mm front and back |
| Fork travel: | 200mm |
| Front wheel: | 29 inch (110 x 20) |
| Rear wheel: | 27.5 or 29 inch (157 x 12) |
| Dropout: | Gamux Snubber |
| Brake mount: | IS-Standard |
| Tires: | Max: 29 x 2.60 |
| Headset: | ZS56/ZS56 |

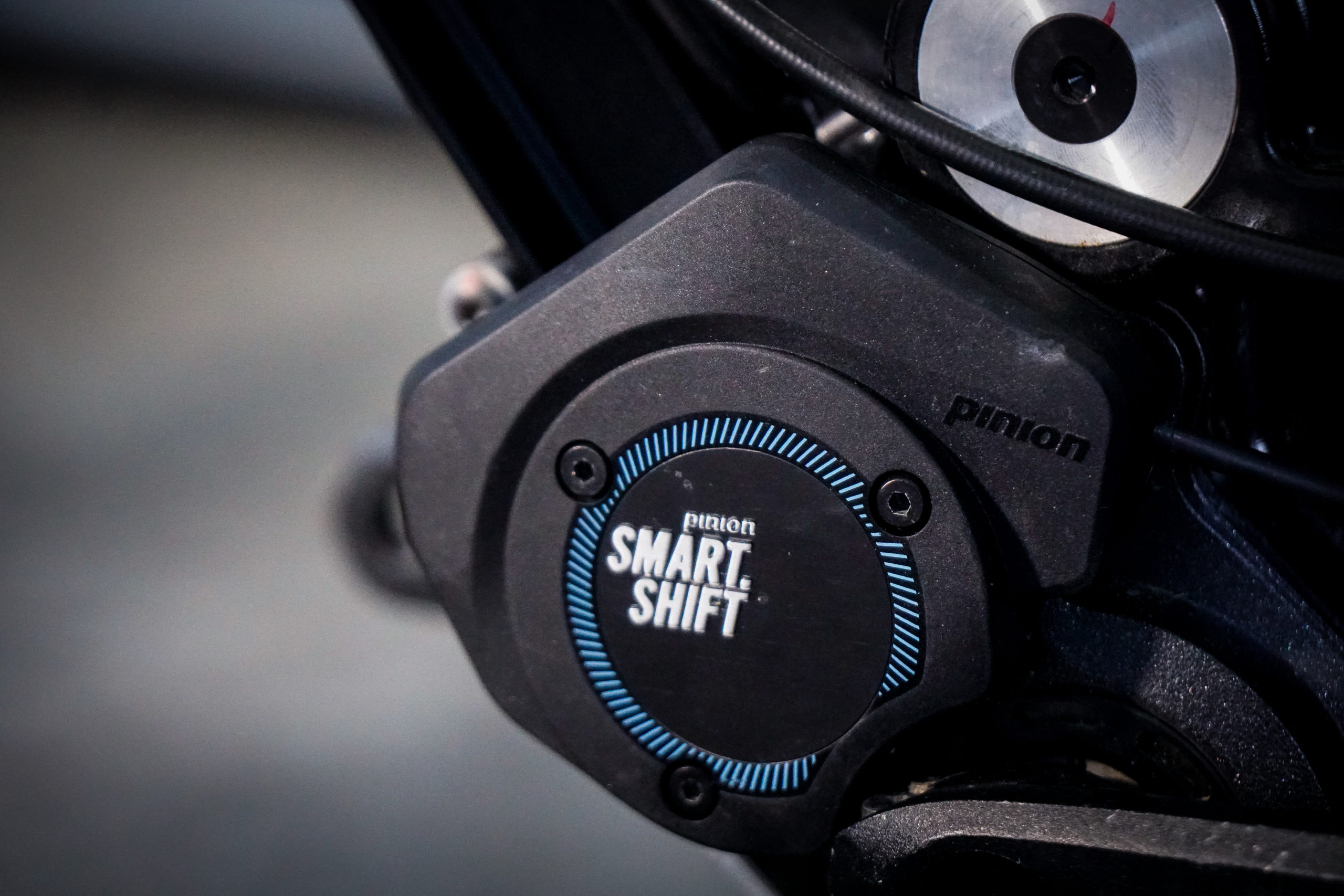

| Bottom bracket: | Pinion C-line or C-line-SmartShift |
| Chainline: | Fixed |
| Frame weight: | Low and central |
| Seat tube: | 30.9mm |
| Frame material: | Aluminium 7075/CFK |
| Colors: | Black Anodized |

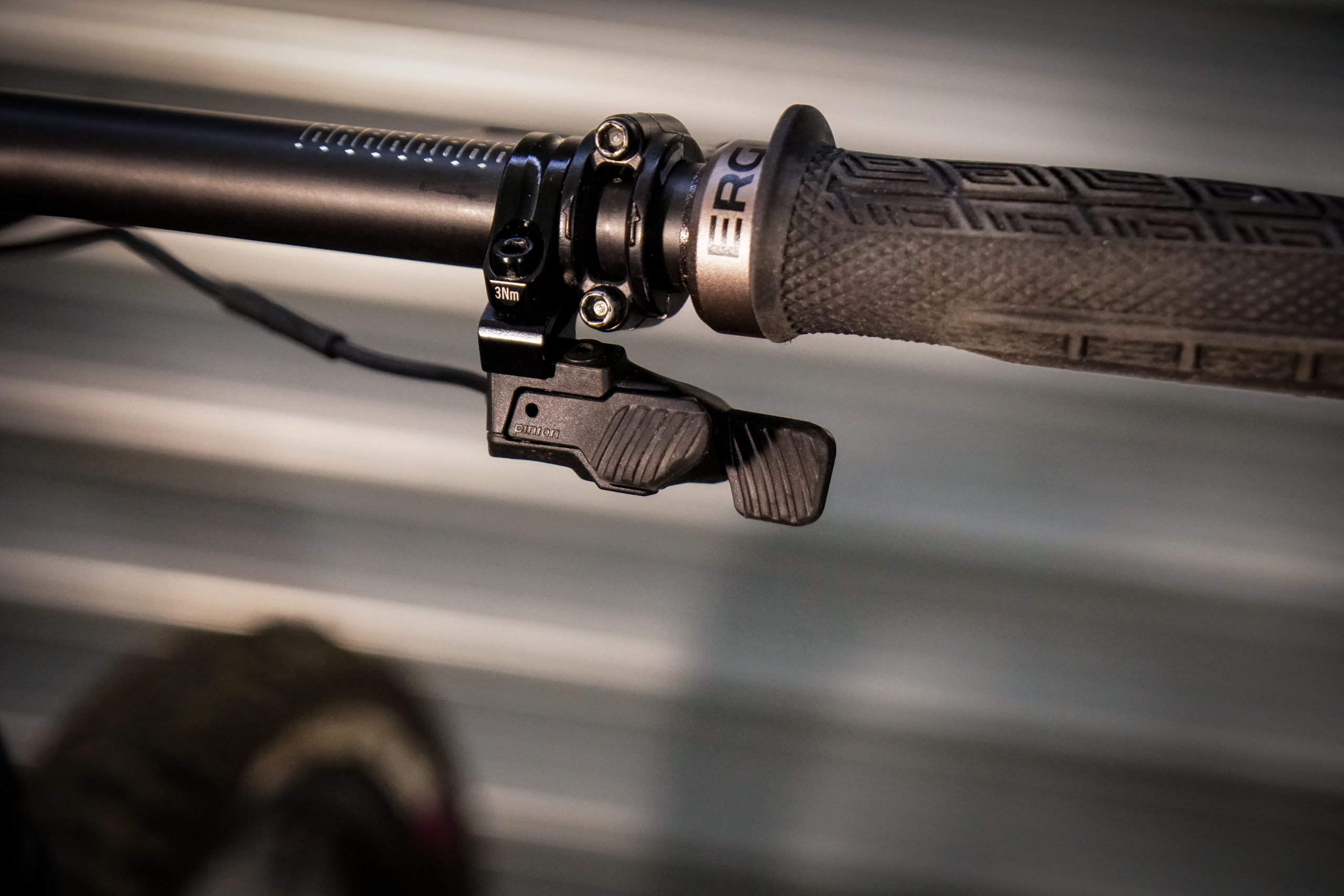

| Cable routing: | External, Pinion SmartShift |
| ISCG mount: | NO – Gamux Skidd-Plate |

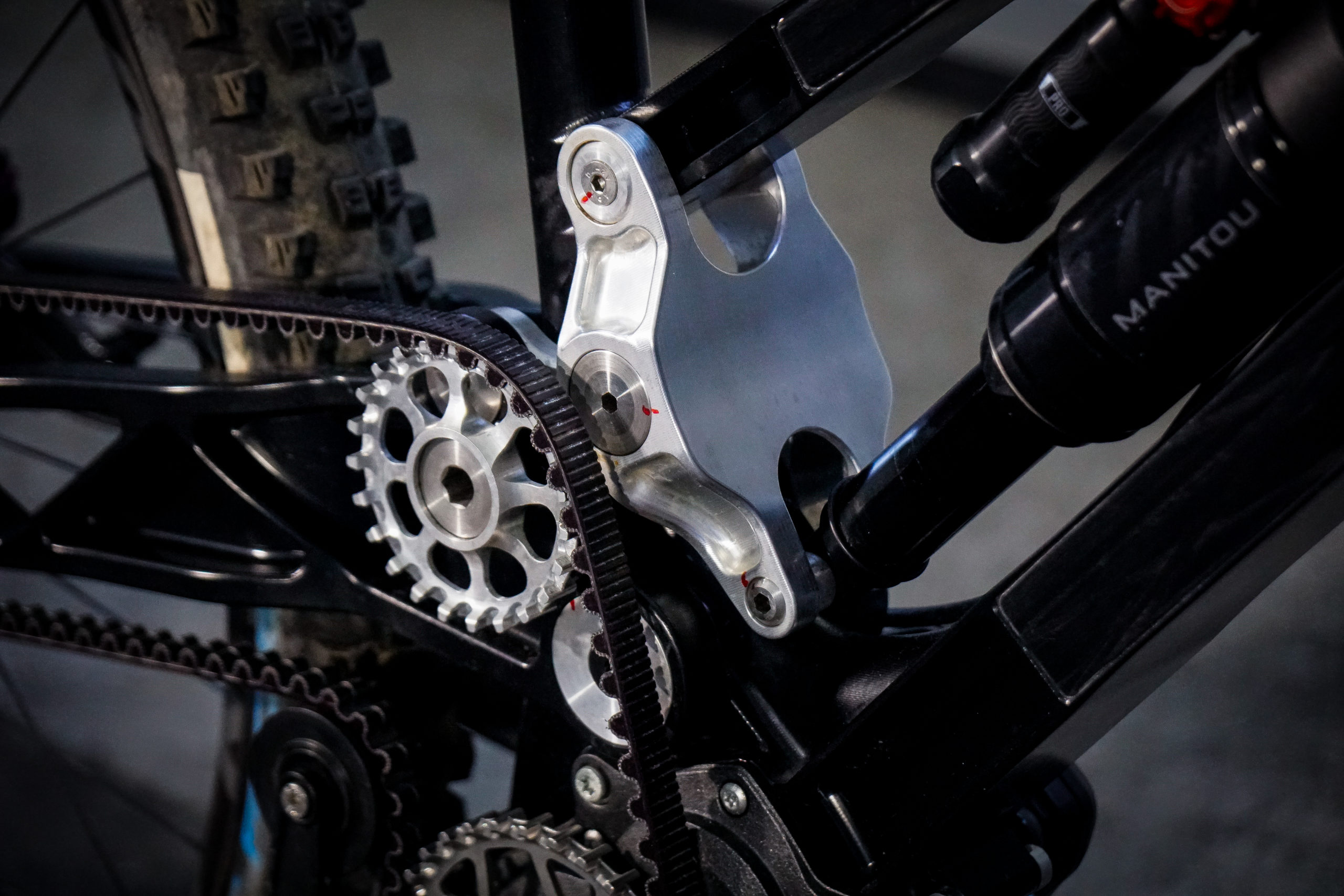

| Beltsprokets: | 30t front / 28-26t rear |
| Available from: | March 2024 |
This is your chance to get your SEGO!
After tree Years of R&D, the Sego is finaly ready for production! This pure bread race machine has been developed with a pure focus on speed. Thus, a lot of “conventional” standards and techniques were questioned and re-imagined in order to create a package that can follow along the name of the bike. Sego translated into english means “to win”!
| Team Build: | Öhlins Build |
| – Gamux Sego Frame | – Gamux Sego Frame |
| – Pinion Gearbox | – Pinion Gearbox |
| – Gates Carbon Drive | – Gates Carbon Drive |
| – Manitou Dorado Pro | – Öhlins DH38.2 |
| – Manitou Mara Pro | – Öhlins TTX22 |
| – Hayes Dominion A4 (black) | – Hayes Dominion A4 (black) |
| – Protaper Cockpit & Seatpost | – Protaper Cockpit & Carbon Seatpost |
| – Reynolds BL309 DH EXP or BL307 DH EXP | – Reynolds BL309 DH EXP or BL307 DH EXP |
| – Schwalbe DH Tires | – Schwalbe DH Tires |
| – Ergon Grips & Saddle | – Ergon Grips & Saddle |
Included in the Framekit:
– Frame
– Frame Hardware
– Pinion Gearbox
– Gates Carbon Drive
The Sego is manufactured in batches. There may be a waiting period after your order until you receive your bike. The first bikes will be delivered in May.
Please get in touch with us to get precise information.
– Shipment costs will be calculated individually and invoiced before delivery.
– Bikes are only sold in Europe for the moment. Thank you for understanding.

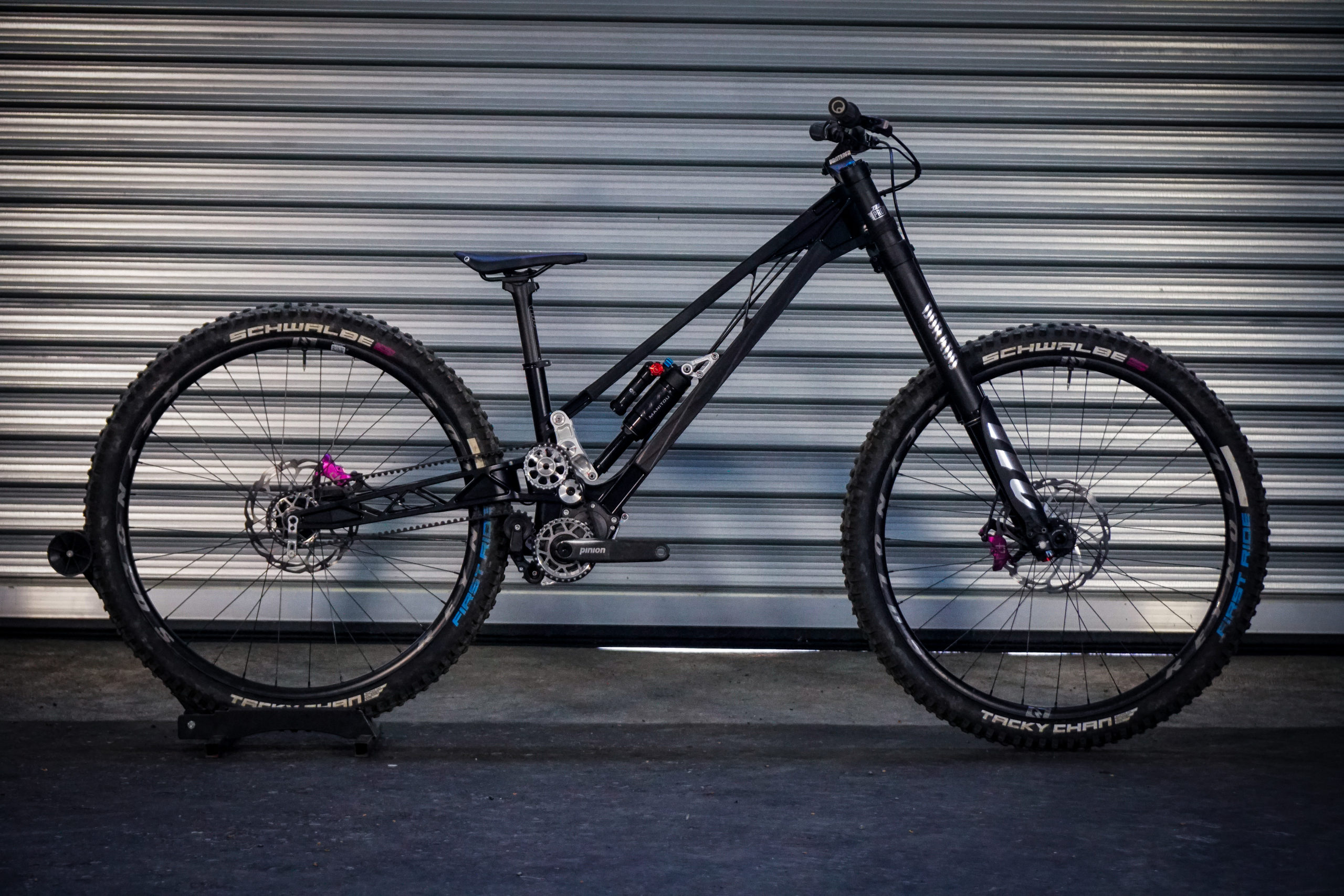

*Production bike may differ from these pictures
*Production bike may differ from these pictures
Maximum 200mm.
External
The Sego of the 1st Edition are pre-production models. The frames have been subjected to months of internal testing but not yet officially tested. The frames are 100% safe and have a 2 year warranty against damage when used as intended!
Air shocks or coil shocks of the length 250mm x 75mm.
Please contact us to verfy your shock compatability.
We can provide kinematic data on request.
Yes. You can choose eihter a 29” or a 27.5” swingarm.
At Gamux
Europe: Yes of course , just order on the Gamux website or contact Gamux.
Other continents: Not yet.
No.
